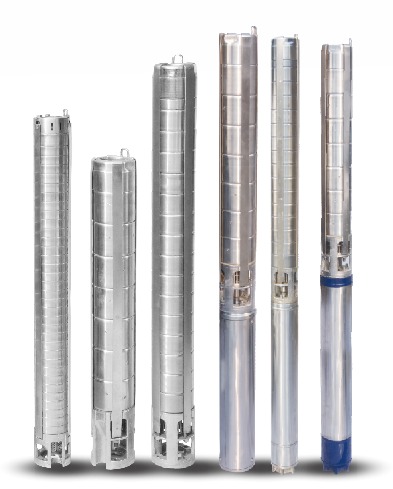

Stainless Steel V4 Borewell Submersible Pumps

Name: Stainless Steel V4 Borewell Submersible Pumps
Brand: OSWAL PUMPS LTD.
Price: 9000 INR
Availability: InStock

Price 9000 INR/ Box

Get a Price/Quote

Stainless Steel V4 Borewell Submersible Pumps Specification

Theory
Centrifugal Pump

Mounting Type
Vertical submersible

Noise Level
Low

Frequency
50 Hz

Inlet/Outlet
32mm / 32mm

Discharge Pressure
Up to 16 bar

Speed
2800 rpm

Working Temperature
Up to 35C

Head Size
Up to 160 meters

Control System
Automatic / Manual Panel compatible

Caliber
4 inch (suitable for 100mm borewell)

Material
Stainless Steel (SS 304/SS 316)

Structure
Multistage Submersible Pump

Power
0.5 HP to 5 HP

Standard
IS 8034 / ISO:9001 Certified

Fuel Type
Electric

Pressure
High Pressure

Usage
Agricultural, Industrial, Domestic Water Supply

Application
Borewell Irrigation, Drinking Water Supply, Industrial Water Supply

Suction Type
Submersible

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Borewell Submersible Pump

Capacity
Depends on model, up to 5400 LPH

Stainless Steel V4 Borewell Submersible Pumps Trade Information

Minimum Order Quantity
10 Boxes

Supply Ability
500 Boxes Per Day

Delivery Time
500 Days

About Stainless Steel V4 Borewell Submersible Pumps

Stainless Steel V4 Borewell Submersible Pumps (Oil Filled)

As an outstanding Manufacturer, Exporter and Supplier of Stainless Steel V4 Borewell Submersible Pumps (Oil Filled) 100mm, OSWAL is a reliable name in the global market. The pumps are manufactured under TQM concepts, and thoroughly designed and tested to ensure their safe & reliable operations. Our offered Stainless Steel Borewell Submersible Pumps V4, find wide application in domestic water supply systems, hotels, hospitals and irrigation, as these have some salient attributes like vibration free and smooth operations, easy installation, high energy efficiency etc.

Major Features of V4 Stainless Steel Borewell Submersible Pumps:

Easily repairable & rewindable
High grade cooling oil filled motor
Higher discharge efficiency
Less frictional losses
Long service life
Maintenance free operations
Noiseless working.

V4 Borewell Submersible Pump set (Oil Filled) - Confirming to IS 8034 : 2002

Specifications :

Power Range	0.5 - 5.0 HP in 1 Phase 0.5 - 7.5 HP in 3 Phase
Version	220-240V, 50 Hz, A.C.- 1 Phase 350-440V - 3 phase
Method of starting	In 1 Phase - Capacitor start and capacitor run (CSCR) in water filled & Capacitor start and run (CSR) in oil filled In 3 Phase - DOL / Star Delta
Speed	2880 rpm.
Discharge Range	15 - 355 lpm in water filled 15 - 475 lpm in oil filled
Head Range	10 - 300 mtr
Outlet size	32, 40, 50 & 65 mm
Degree of Protection	IP 68
Maximum Outer diameter	98 mm
Duty	S1 (Continuous)
Mounting	NEMA / Key way
Power Range	0.5 - 5.0 HP in 1 Phase 0.5 - 7.5 HP in 3 Phase
Version	220-240V, 50 Hz, A.C.- 1 Phase 350-440V - 3 phase
Method of starting	In 1 Phase - Capacitor start and capacitor run (CSCR) in water filled & Capacitor start and run (CSR) in oil filled In 3 Phase - DOL / Star Delta
Speed	2880 rpm.
Discharge Range	15 - 355 lpm in water filled 15 - 475 lpm in oil filled
Head Range	10 - 300 mtr
Outlet size	32, 40, 50 & 65 mm
Degree of Protection	IP 68
Maximum Outer diameter	98 mm
Duty	S1 (Continuous)
Mounting	NEMA / Key way

Motor Pump

NRV Housing	Cast Iron (Regular) / Stainless Steel (Platinum)
Impeller	Nylon / Noryl*
Diffuser	Cast Iron / Noryl*
Pump Shaft	SS 410
Suction inter Connector	Cast Iron (Regular) / Stainless Steel (Platinum)
Coupling	SS 410
Pump Casing	Stainless Steel
NRV Housing	Cast Iron (Regular) / Stainless Steel (Platinum)
Impeller	Nylon / Noryl*
Diffuser	Cast Iron / Noryl*
Pump Shaft	SS 410
Suction inter Connector	Cast Iron (Regular) / Stainless Steel (Platinum)
Coupling	SS 410
Pump Casing	Stainless Steel

MOC Motor

Upper, Lower Housing & Motor Base	Cast Iron (regular) / Stainless Steel Jacket (Platinum)
Stator Body	Stainless Steel
Shaft	SS 410
Bearing	Leaded Bronze in water filled. Anti frictional deep groove ball bearing in oil filled
Thrust Bearing Set	Carbon V/s SS in water filled

Product details

Cable Connection	Star and Star Delta Connection
Flow Range	480 - 1440 lpm / 28.8 - 86.4 m3/h
Maximum Cooling Flow	0.15 m/sec.
Maximum Outer Diameter	152 and 188 mm
Outlet Size	4 Inch
Speed	3450 RPM
Type of Duty	S1 (Continuous)
Direction Of Rotation	CCW
Degree Of Protection	IP 68
Model Name/Number	OSP-60
Brand	OSWAL
Head	5-368 meters
Motor Horsepower	3 - 75 HP
Version	380/460 V,A.C,60 Hz
Thrust Load	27500 N
Method Of Starting	DOL (Direct on line) and Star Delta
Maximum Starts Per Hour	20 times
Usage/Application	Industrial

Superior Stainless Steel Construction

Manufactured with SS 304 or SS 316, the pump resists corrosion and guarantees a long operational lifespan, even in tough groundwater conditions. Its robust design supports heavy-duty continuous use without performance loss, making it a dependable choice for diverse environments.

Efficient and Versatile Performance

Suitable for borewells with a minimum diameter of 100mm, this pump manages high discharge rates and notable pressure, meeting the demands of borewell irrigation, industrial processes, and drinking water supply. Its installation depth of up to 150 meters and compatibility with both manual and automatic control panels ensure flexibility in deployment.

FAQs of Stainless Steel V4 Borewell Submersible Pumps:

Q: How does the inbuilt thermal overload protector enhance pump safety?

A: The inbuilt thermal overload protector automatically disconnects the pump if it detects overheating, preventing motor burnout and extending the pumps service life.

Q: What is the installation process for the Stainless Steel V4 Borewell Submersible Pump?

A: Installation requires placing the pump vertically in a borewell of at least 100mm diameter, connecting the electric cable (supplied with 30 meters as standard), and integrating with a control paneleither manual or automatic. Professional installation is recommended for optimal performance.

Q: Where can this borewell submersible pump be used?

A: It is designed for agricultural irrigation, industrial water transfer, and domestic water supplyideal for locations across India requiring reliable and high-pressure water delivery from deep borewells.

Q: What benefits do water-lubricated heavy-duty bearings provide?

A: Water-lubricated bearings offer smooth, quiet operation with reduced maintenance needs, ensuring a longer working lifetime even in continuous or intensive use cases.

Q: Can the cable length be extended beyond the standard 30 meters?

A: Yes, the supplied cable can be extended as per site requirements, allowing installation even at depths up to 150 meters below ground.

Q: What is the discharge range and how does it vary by model?

A: Depending on the model selected, the pump delivers up to 450 LPM, with a maximum capacity of up to 5400 LPHselectable to match specific usage requirements for flow rate and pressure.

Q: How does the IS 8034 / ISO:9001 certification benefit users?

A: These certifications ensure the pump adheres to Indian and international quality standards, guaranteeing durability, efficiency, and safety for all users, whether they are dealers, traders, or end consumers.
