V4 Borewell Submersible Pumps (Oil Filled)

V4 Borewell Submersible Pumps (Oil Filled)

Product Details:


Product Description

Borewell Submersible Pumps

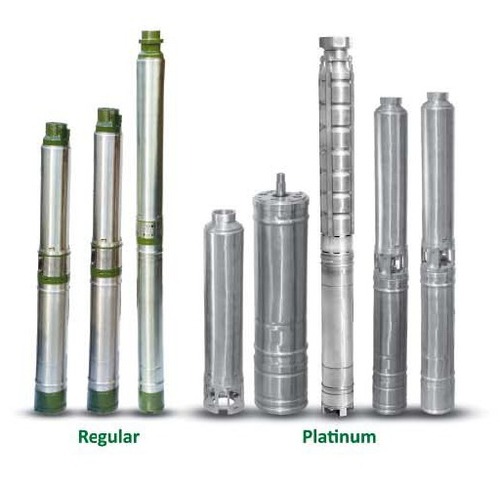

V4 Borewell Submersible Pumps (Oil Filled) 100mm

With our quality-oriented design & development approach, we offer the finest Borewell Submersible Pumps (Oil Filled) 100mm. These find wide usages in Water Circulation Systems, Irrigation, Hotels & Hospitals, Gardening and in other domestic and commercial areas. The V4 Oil Filled Borewell Submersible Pump is thoroughly designed and composed to give smooth working, uninterrupted & constant flow and excellent performance. Moreover, OSWAL oil filled submersible pump is made with thermoplastic impellers, which have inbuilt check valve features to prevent back-flow of liquid.


  • Compact & performance based design as well as light weight
  • Non overloading power attributes
  • Easy to install, assemble and maintain
  • Vibration free
  • Optimum corrosion resistance.
  • Easily repairable
  • Excellent discharge
  • Higher efficiency
  • Noiseless operations
  • With water lubricating bearings.

Application in :

  • ·         Water supply from bore well
  • ·         Domestic & rural  water supply
  • ·         Municipal & Irrigation purpose
  • ·         Water supply in commercial establishments
  • ·         Small farms, gardening & nurseries.



    V4 Borewell Submersible Pump set  (Oil Filled ) 100mm - Confirming to IS 8034 : 2002

    Specifications :

    Power Range

    0.5 - 5.0 HP in 1 Phase

    0.5 - 7.5 HP in 3 Phase


    220-240V, 50 Hz, A.C.- 1 Phase

    350-440V - 3 phase

    Method of starting

    In 1 Phase - Capacitor start and capacitor run (CSCR) in water filled  & Capacitor start and run (CSR) in oil filled

    In 3 Phase - DOL / Star Delta


    2880 rpm.

    Discharge Range

    15 - 355 lpm in water filled

    15 - 475 lpm in oil filled

    Head Range

    10 - 300 mtr

    Outlet size

    32, 40, 50 & 65 mm

    Degree of Protection

    IP 68

    Maximum Outer diameter

    98 mm


    S1 (Continuous)


    NEMA / Key way

    MOC  Pump

    NRV Housing

    Cast Iron (Regular) / Stainless Steel (Platinum)


    Nylon / Noryl*


    Cast Iron / Noryl*

    Pump Shaft

    SS 410

    Suction inter Connector

    Cast Iron (Regular) / Stainless Steel (Platinum)


    SS 410

    Pump Casing

    Stainless Steel

    MOC - Motor

    Upper, Lower Housing & Motor Base

    Cast Iron (regular) / Stainless Steel Jacket (Platinum)

    Stator Body

    Stainless Steel


    SS 410


    Leaded Bronze in water filled.

    Anti frictional deep groove ball bearing in oil filled

    Thrust Bearing Set

    Carbon V/s SS in water filled



* Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.

"We require orders in Bulk Quantity"
