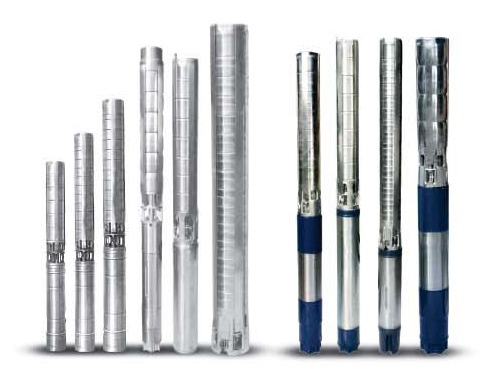

V4 Borewell Submersible Pump Set
V4 Borewell Submersible Pump Set

V4 Borewell Submersible Pump Set

Price 9000 INR/ Box

V4 Borewell Submersible Pump Set Specification

  • Caliber
  • V4 (100 mm bore)
  • Control System
  • Automatic/Manual
  • Speed
  • 2800 RPM
  • Inlet/Outlet
  • 32 mm/32 mm
  • Frequency
  • 50 Hz
  • Working Temperature
  • 0C to 50C
  • Mounting Type
  • Vertical
  • Noise Level
  • Low
  • Head Size
  • Up to 150 meters
  • Theory
  • Centrifugal Pump
  • Discharge Pressure
  • Upto 17 bar
  • Material
  • Stainless Steel, Cast Iron
  • Structure
  • Multistage Vertical Submersible
  • Power
  • Single Phase 1 HP to 2 HP
  • Standard
  • IS 8034, IS 9283
  • Fuel Type
  • Electric
  • Pressure
  • High Pressure
  • Usage
  • Agricultural, Industrial, Domestic
  • Application
  • Irrigation, Water Supply, Drinking Water
  • Suction Type
  • Submersible
  • Seals Type
  • Mechanical Seal
  • Priming
  • Self Priming
  • Pump Type
  • Borewell Submersible Pump
  • Capacity
  • Up to 60 LPM


V4 Borewell Submersible Pump Set Trade Information

  • Minimum Order Quantity
  • 10 Boxes
  • Supply Ability
  • 500 Boxes Per Day
  • Delivery Time
  • 500 Days


About V4 Borewell Submersible Pump Set

V4 Water Filled Borewell Submersible Pump Set

We have carved a niche as a manufacturer, exporter, and supplier of V4 Water Filled Borewell Submersible Pump Set that is suitable for underwater operations. OSWAL Borewell Submersible Pump confirm to IS : 8034 and the dimensions of the product matches to the NEMA/Indian Standards. Our pumps allow vibration free and noiseless operations with the complete absence of suction problem. While designing and developing our OSWAL Water Filled Borewell Submersible Pump Set, we make sure that customers are served highly efficient, easily repairable, and maintenance free products. Model number V4 100 mm normal bore pump with hard wearing bushes and in-built check valve assure consistent performance and durability.

Features

  • Low power consumption
  • Water lubricating bearings
  • Corrosion resistant
  • High efficiency

V4 Borewell Submersible Pump set  (Oil Filled/Water Filled) 100mm Confirming to IS 8034 : 2002

Power Range

0.5 - 5.0 HP in 1 Phase

0.5 7.5 HP in 3 Phase

Version

220-240V, 50 Hz, A.C.- 1 Phase
350-440V 3 phase

Method of starting

In 1 Phase - Capacitor start and capacitor run (CSCR) in water filled  & Capacitor start and run (CSR) in oil filled
In 3 Phase DOL / Star Delta

Speed

2880 rpm.

Discharge Range

15 355 lpm in water filled
15 475 lpm in oil filled



Head Range

10 300 mtr

Outlet size

32, 40, 50 & 65 mm

Degree of Protection

IP 68

Maximum Outer diameter

98 mm

Duty

S1 (Continuous)

Mounting

NEMA / Key way

MOC Pump

NRV Housing

Cast Iron (Regular) / Stainless Steel (Platinum)

Impeller

Nylon / Noryl*

Diffuser

Cast Iron / Noryl*

Pump Shaft

SS 410

Suction inter Connector

Cast Iron (Regular) / Stainless Steel (Platinum)

Coupling

SS 410

Pump Casing

Stainless Steel

 MOC Motor

Upper, Lower Housing & Motor Base

Cast Iron (regular) / Stainless Steel Jacket (Platinum)

Stator Body

Stainless Steel

Shaft

SS 410

Bearing

Leaded Bronze in water filled.

Anti frictional deep groove ball bearing in oil filled

Thrust Bearing Set

Carbon V/s SS in water filled



Rugged Design for Diverse Applications

Engineered for durability, the V4 Borewell Submersible Pump is constructed from premium-grade stainless steel and cast iron, making it an ideal choice for agricultural irrigation, domestic water supply, and industrial operations alike. Its vertical multistage structure allows efficient water lifting under challenging conditions.


Superior Performance and Efficiency

Operating at speeds up to 2800 RPM and delivering up to 17 bar of pressure, this pump ensures reliable water delivery over depths up to 80 meters. With a self-priming mechanism and water-cooling system, it maintains high discharge rates while minimizing energy consumption and noise.


Easy Installation and Maintenance

V4 Borewell Submersible Pump Sets are designed for straightforward deployment and require minimal maintenance. Equipped with water-lubricated bearings and a mechanical seal, they offer long operational life and service stability, suitable for continuous duty in demanding environments.

FAQs of V4 Borewell Submersible Pump Set:


Q: How can the V4 Borewell Submersible Pump Set be installed for optimal performance?

A: For optimal functionality, the pump should be vertically submerged within a borewell at a depth not exceeding 80 meters, ensuring the cable provided (up to 100 meters on request) is compatible with the borewells length. Professional installation is recommended to ensure proper alignment and electrical connections.

Q: What are the main benefits of using a water-cooled, IP68-rated pump for irrigation and domestic purposes?

A: A water-cooled, IP68-rated pump offers enhanced motor protection against dust and prolonged water immersion, ensuring reliability and minimizing overheating during continuous operation. This makes it a safe, dependable choice for irrigation, domestic, and industrial water supply.

Q: When is it recommended to use a pump with water-lubricated thrust and radial bearings?

A: Water-lubricated thrust and radial bearings are ideal for applications requiring long-lasting, maintenance-free operation in submersible conditions. Their design reduces friction and wear, resulting in smoother, quieter performance suitable for agricultural, industrial, or drinking water usage.

Q: Where can these V4 Borewell Submersible Pump Sets be sourced in India?

A: These pumps are available from authorized dealers, distributors, exporters, manufacturers, retailers, suppliers, traders, and wholesalers across India. Major suppliers follow IS 8034 and IS 9283 standards, ensuring quality and compliance.

Q: What is the typical process for selecting the correct pump configuration?

A: First, assess your wells diameter (minimum 100 mm for V4), water table depth, required discharge flow rate (up to 60 LPM), and desired head (up to 150 meters). Then select an appropriate single-phase model (1 HP to 2 HP) with the necessary cable length and outlet dimensions for your application.

Q: How should the pump be used to maximize its lifespan and efficiency?

A: Operate the pump within its specified temperature (0C to 50C) and head limits, ensuring water submersion does not exceed 80 meters. Regularly check for voltage stability and keep up with routine maintenance, especially for water quality and debris that may affect performance.
